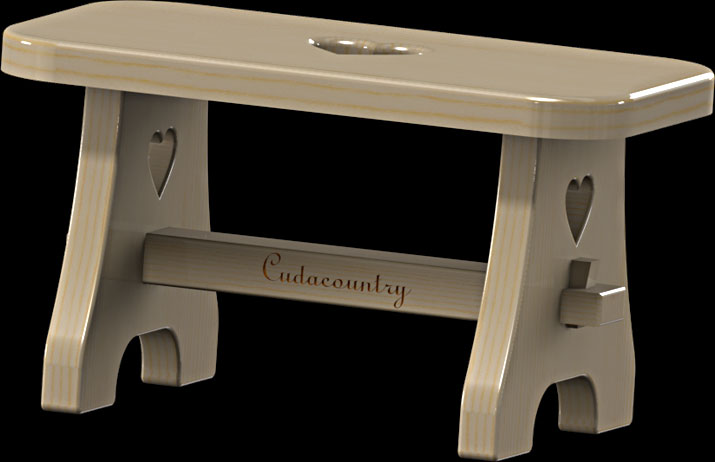

SOLIDWORKS 2017 Foot Stool Tutorials

Welcome to cudacountry's SOLIDWORKS 2017 Foot Stool Tutorials. Our tutorials are written for SOLIDWORKS 2017. The following tutorials with the PDF icon are available for viewing. Download the free reader from Adobe.

Any questions contact cudacountry at



Table of Contents

Part
Block
1. Heart. Sketch a heart using a 4 point Style Spline. Add dimensions and perfect heart! Save heart sketch as a Block to use in other projects.
Part 2. Top Board. Includes inserting heart block.
Part 3. Side Board. Includes inserting heart block.
Part 4. Brace.
Part 5. Wedge.
Part 6. Dowel Pin.
Assembly 7. Assembly.
Drawing 10. Drawing. 11” by 17” paper.
