SOLIDWORKS 2017

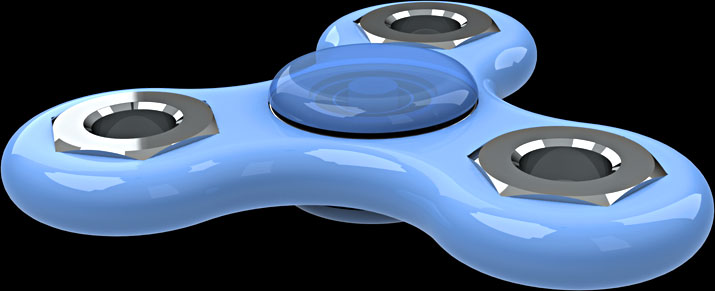

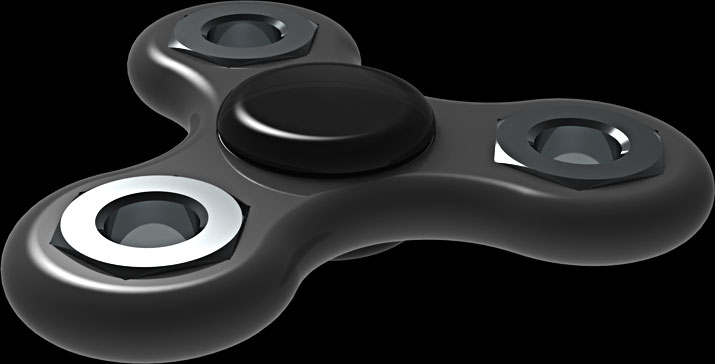

Tri-Spinner Toy Tutorials

Welcome to cudacountry's SOLIDWORKS 2017 Tri-SpinnnerTutorials. The Tri-Spinner tutorials are written for SOLIDWORKS 2017.

Any questions contact cudacountry at

The following tutorials with the PDF icon are available for viewing. Download the free reader from Adobe.



Table of Contents

Part 1. Spinner.
Toolbox
Part
2. Bearing. 608 bearing from Toolbox (0080-22).
Toolbox
Part
3. Nut. M10 hex nut from toolbox.
Toobox
Properties

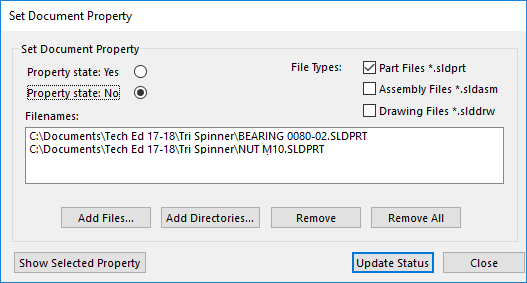

4. Set Toolbox Files Properties. Use sldsetdocprop.exe to change the Bearing and Nut toolbox files from a Toolbox file to a SOLIDWORKS part file.
Assembly 5. Assembly.
Part 6. Cap with Mates.

Use sldsetdocprop.exe to change Bearing and Nut toolbox files from a Toolbox file to a SOLIDWORKS part file.
